1.3m Printing Machine Photo Canvas Flatbed Printer UV

1.3*1.3m UV Printer



Product Description
Product Name 1.3m Printing Machine Photo Canvas Flatbed UV Printer
Print Technology
Printer Model   1313 UV Printer
 Max. Print size   1300*1300mm
 Print head model   Epson/Toshiba CE4M,Ricoh G5,G6
Qty of Printhead   1-3 pcs/2-4pcs
Print Direction   Unidirectional /Biodirectional
Print head height    Automatic height adjustment
Print head cleaning  Auto cleaning system
Print resolution   4 pass: 720*720 dpi
  6 pass: 720*1080 dpi
  8 pass: 720*1440 dpi
Ink system
Ink type   UV ink
 Ink tank volumn   1L
Ink supply   General ink supply system
Drying type   Imported LED lamp curing
 White ink stirring   Standard configuration
While ink circulation   Standard configuration
Media type   Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard and others
Max.media thickness   100mm, Larger size can be customized
Operation Language   Chinese / English
Operation system   Windows XP/ Windows 7
Operation platform   Completed vacuum adsorption platform
Operation Environment   Temperature:20℃~28℃  Humidity:40% RH~60% RH
Computer configuration   System:XP,win7,win10,32/64
  CPU:≥ Intel i5
  RAM: ≥8GB
  Hard Disk: SATA 500G, NTFS
  CD Rom: DVD recordable
  Space for Disk C : ≥100 G
RIP software   RIPRint/UnitedFancy
Interface   LAN
Color control  Comply with ICC standards with curve and density adjustment function.
 Power supply   AC220V,50/60HZ
 Power consumption   1 KW
Noise   Standby < 32dB   Working < 65dB
The UV lamp   LED curing, 50000 hours long lifetime, water colling




  • YDM 1313 UV Printer with newest configuration
  • 1313 uv printer equipped with 1L ink carriage with low ink warning system and white ink circuration&stiring system
  • 1313 uv printer equipped with negative ink supply system,save your ink,and make printing work more frequently
  • 1313 uv printer equipped with anti-collision device for printhead


  • YDM 1313 UV Printer equipped with double lead ball screw instead of belt
  • Higher printing accuracy
  • Printing more stability

  • YDM 1313 UV Printer equipped with double static eliminators and anti-collision device
  • Printing on plastic material more frequency,avoid inks splashing when printing
  • printing work more safe and easier

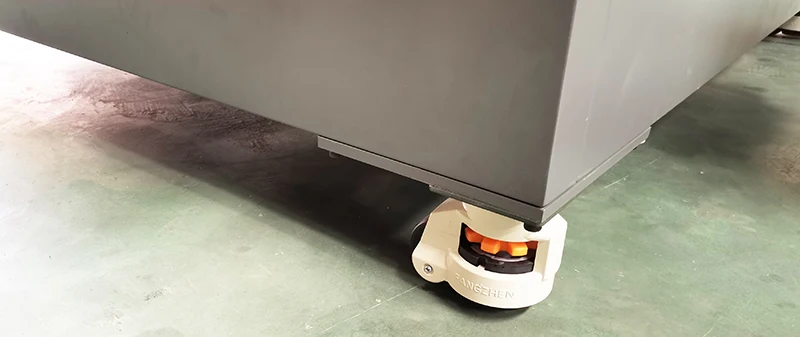

  • YDM 1313 UV Printer equipped with 4 pcs of rubber wheels
  • Move printer work more easier


Company Information


  • YDM as the leading manufacturer of Inkjet printers and uv printers with around 20's experience in China,we have a professional service team to fix the problem on time for our customers from all over the world.
  • YDM uv printers and inkjet printers already were certificated by CE,SGS,TUV officially
  • 24 hours*7,professional service



Printer Applications
  • 1313 UV Printer is usually used in Advertising,decoration and other industry
  • 1.3*1.3m printing machine equipped with Ricoh G5/G6,or Toshiba CE4M printhead,12-15sqm/h,it can reach your mass production demand.
  • YDM 1313 uv inkjet printers is used to print on advertising signs,bill board,shoes,leather,acrylic,metal,glass,aluminum sheet,ceramic tiles,plywood,furniture and other materials.


Acrylic Printing:

Glass Printing:(Glass Splashbacks/Glass Door and others)

Wood ItemPrinting:

Ceramic Tiles Printing:

Metal Panel Printing:

Related Products YDM is the Professional manufacturer of Printing Machine,like A3 Printer,UV 6090 Printer,UV 1313 Printer,UV 2513 Industry Printing machine,UV 2030 Industry Printing Machine,UV 4030 Industry Printing Machine And roll to roll wallpaper printing machine,More information,Pls clik below items: FAQ


Q:What materials can print on?

A:POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading, blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.


Q:What’s RIP installation interface supported language?

A:Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese (Simplified), Chinese (traditional)


Q:How to do when the status of the printhead is not good?

A:1. Trun off power, move the printhead to the initial position, check if the printhead and cap top is in the same line

2. Do one time cleaning action, and print the test status.

3. If above operation still can’t solve this problem, then disassembly the printhead, cleaning the printhead manually or use cleaning machine to clean the printhead

4 If the status keep the same after above all operations, then check other parts or change a new printhead to test.



Q: What is Warranty Policy

A: During the 1 year warranty if any part is faulty, our company will give you replacing parts for free. When the warranty expired, our company will still provide free technician support. Especially, you will gain the lifelong Warranty for your large format digital inkjet printer with continuously ink order.


Q: What about the after-sales service ?

A: We have many experienced technician, Provide the technical support for all of our customers ,We will teach you how to operate the machines until you master it ,sometimes our technician team will go abroad to test and repair the machines.

Contact Us

 if you are interested in our Printing Machine 1313 UV  Printer ,,pls feel free to contact us!!!!
