CRYSTEK CT-7406B single XP600 printhead eco solvent printer
Your professional printing solution supplier
Water-based Dye ink / Pigment ink
Sublimation ink / eco solvent ink
Media: PP,photo, paper, vinyl sheet, indoor lightbox cloth, reflective material
Specifications
Model | CRYSTEK CT-7406B | |
printhead | Piezo Electric Printhead XP600 | |
Number of Printhead | 1 Head | |
Max Print Width | 1800mm(74”) | |
Printing Resolution | 3Pass | 15 m²/hr |
4Pass | 1O m²/hr | |
6Pass | 7 m²/hr | |
Ink | Type | Eco solvent ink, Water based ink, pigment, sublimation ink |
Color | CMYK 4 colors | |
Capacity | 1500ml of each ink cartridge | |
Ink Supply System | Block brake type of ink supply system | |
Media | Width | 1800mm(74”) |
Type | PP, photo, paper, vinyl, indoor lightbox flex banner, sticker, pvc, reflective material | |
Print Height | 2-3mm above media adjustable | |
Heating System | pre-heating platen-heating post-heating | |
Media adsorption system | Several phase of intelligent air draft, and intensity adjustable | |
Auto Media System | Equipped (Max Media Weight 40kg) | |
Auto Printhead Cleaning System | Anti-clogged Flash Function & Moisturing System | |
Clamp | Equipped | |
Auto take up system | Selectable | |
Print Interface | network Cable interface | |
RIP software | Maintop | |
Input Power | AC220V,50Hz/60Hz | |
Working environment | 10-35℃ humidity 20-85% | |
Machine Dimension | 2830*780*1260mm(L*W*H) 150KG ±15kg | |
Packing Dimension | 2900*730*630mm(L*W*H) 165KG ±15kg | |

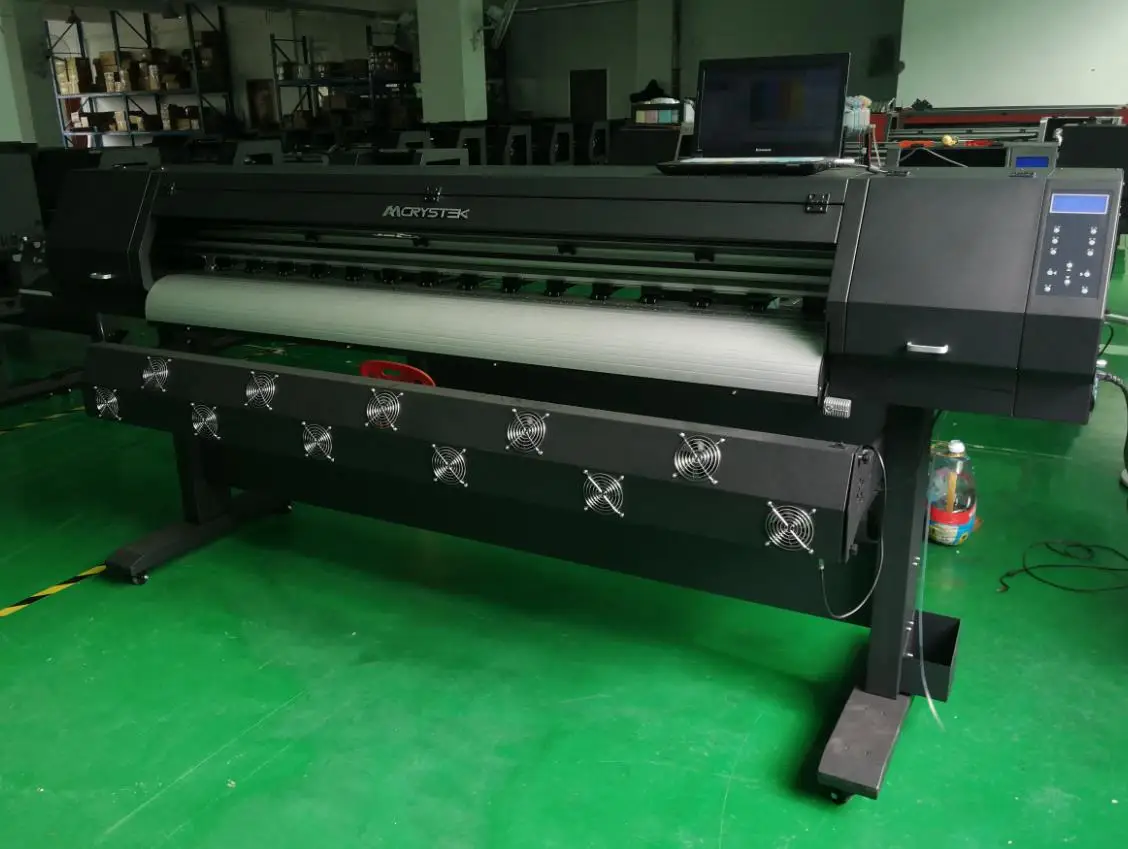

Detailed Images
Application
Indoor outdoor AD & Craft copy
Exhibition & Wallpaper
Warranty
Warranty: One year warranty for machine boards and motors
Our Services
Services: If you have any question or help, engineer will control your computer to help you solve problem.
Traning: You arre welcome to send engineer to our office for free training.
