Product Description

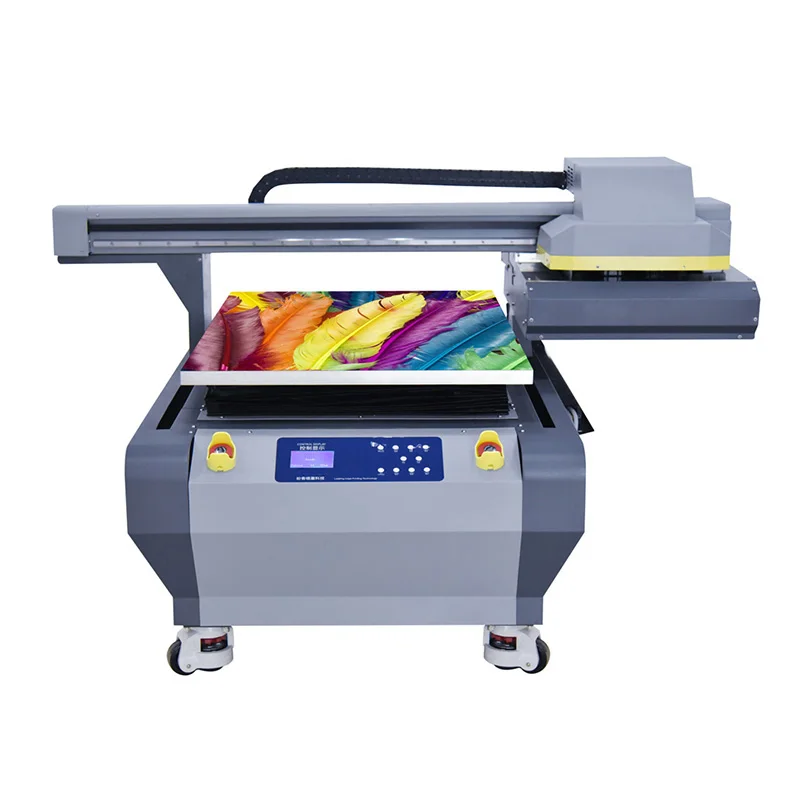

Product introduction of Galaxy Jet X A1 UV printer
Galaxy Jet X A1 UV colour printer belongs to Galaxy-Jet, which is a multi functional LED digital UV printer that created by Focus, the printer was built with industrial configuration as thicken aluminum profile, water circulation cooling system, 100W automatic detect UV Curing system… max. 2880DPI*1440DPI resolution. Galaxy Jet X A1 UV printer Can print on bend, cylinder objects, balls etc. Output with good 3D texture printing result.
| Model | Galaxy Jet X A1 UV printer | |
| Repeat printing precision | Overlap small than 0.1mm | |
| Head maintain | Head clean during/after printing, Keep-wet system when idle. | |
| Ink system | Automatically Ink damper refill system | |
| Max. printing size | A2+: 600mm*900mm colour printer | |
| Print head | Three XP600 print heads | |
| Print color | CMYK+LCLM+White+Varnish | |
| Print direction | Unidirection / Bidirection | |
| Print speed | A2(1440dpi)/ 120s | |
| Max. media thickness | 120mm | |
| Max. media weight | 15KG | |
| Max. printing resolution | 2880DPI*1440DPI*720DPI*360DPI | |
| Ink volume | 550ML | |
| Ink type | UV environmentally ink | |
| Height adjustable | Manual / Automatic | |
| Print head protection | Intellective automatic detect | |
| Working power | 110-220V 50-60HZ 450W | |
| Interface | USB2.0 /IEEE1394 | |
| System require | Windows XP / Vista/ Win7 / MAC I Linus | |
| Working enviroment | 25-30C, 50% Humidity, Dust free | |
| Net weight/Gross weight | 260KG/300KG | |
| Printer size | 140CM*140CM*90CM | |
| Packing size | 158CM*158CM*118CM | |
|
LED-UV Function |
UV lamp system | 6 Power degree adjustable system |
| UV Power | 100W | |
| UV lamp life time | 50000hours | |
| UV light wavelength | 390-400nm | |
| Light power | 500mw/w | |
| Cooling type | Water circulation | |
| Cooling adjustment | Automatic on/off between 25-30c | |
| Control Software | FocusRIP-UV V3.5.0 | |
Factory view
Detailed Images
Machine Parts of Galaxy Jet X a1 uv printer
The teflon coated adsorption vacuum A2 size 600*900mm table can print on the flexible material but without scratch the print head.
The laser engraved margin rule marked at the X and Y axis of the printing table. Easily locate the printing position and improve the printing effective.
Inspection of Galaxy Jet X A1 UV printer
Having a strict factory inspection standard, the precision of the platform and the bottom plate of the print head are all controlled by micrometer gauge.
Details of Galaxy Jet X A1 UV colour printer
The laser hollowed-out acrylic viewing window design effectively prevents the UV light from harming the naked eye, and does not affect the monitoring of the printing substrate and print head.
The appearance of the Galaxy-Jet X is researched and developed by Focus digital technology co. ltd. and gained the country patent.
Adjustable cylindrical print tooling supports digital UV printing on any cylindrical material.
Thicken aluminium profile made as the keel of 6090 A1 uv printer to ensure the machine stably working.
Support max. material thickness 120mm. expand more printing area for customer.
Added 8 individual ink-stirring function to prevent white, color and vanish sediment.
Dual emergency button design to be sure the safety operation and more convenience.
CMYK+LCLM color makes the color more vivid and natural, equipped with ink-lacked sensor .
With three print heads, capable of stalling various of print heads like XP600, TX800, DX5, DX7 etc., allows white, color, vanish print at the same time, which highly enhance the print speed.
Beside, the breathe ink damper can also reduce the opportunity of print head clogging.
Software parts of Galaxy Jet X A1 UV printer
Via attribute setting to control the ink size and different color, gets various and unique 3D and vanish texture output.
Automatic print head wipe and keep wet system. Automatic flushing when power on and keep wet when off. Just for prevent print head clog during idle and after printing.
Complete installation instruction video and specification allows you get familiar with the printer shortly.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
