Product Description

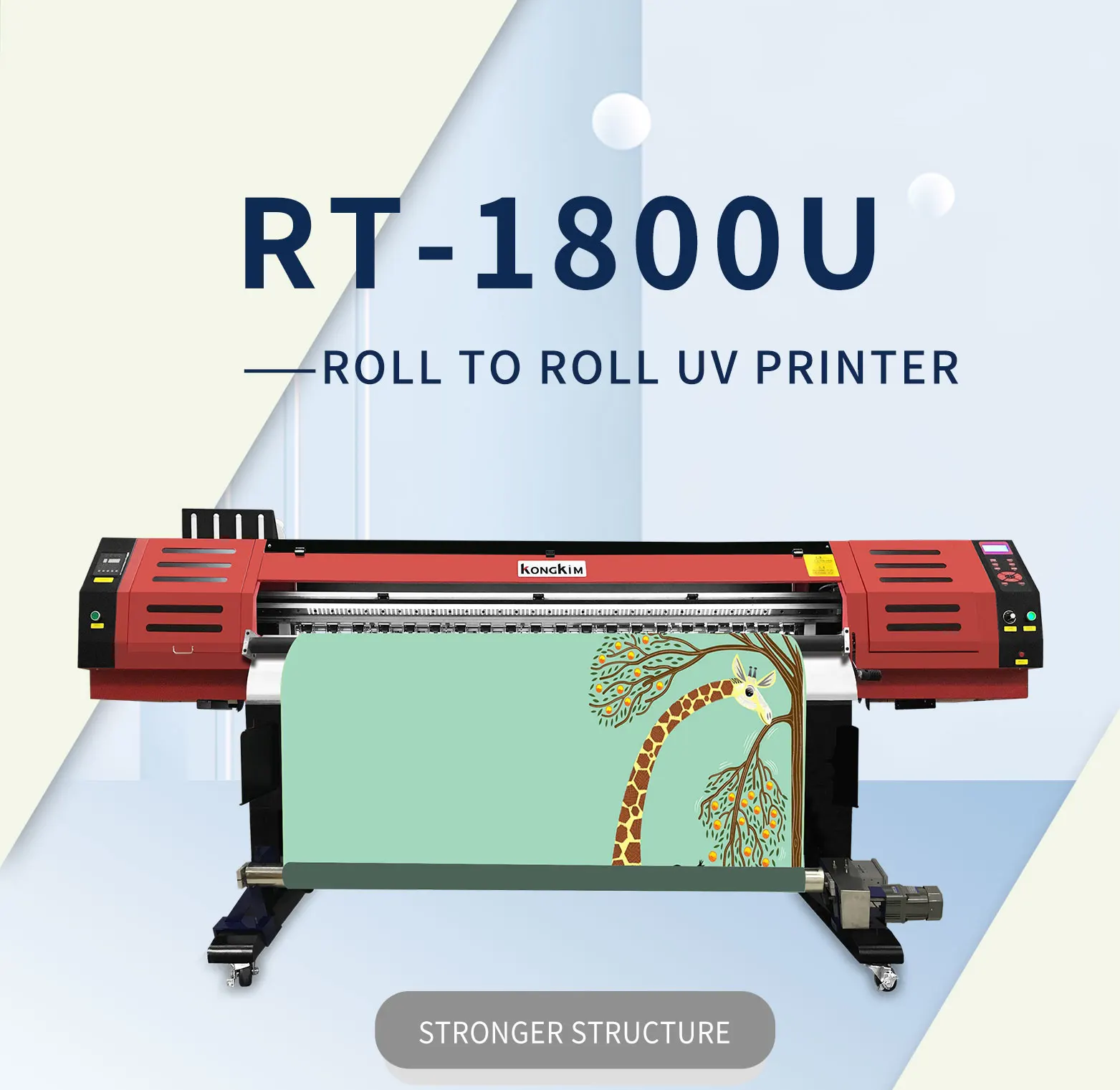

Large format UV printer 1.8/3.2m inkjet UV LED roll to roll printers for plotter leather sticker canvas machine digital printing
Product Parameters Large format UV printer 1.8/3.2m inkjet UV LED roll to roll printers for plotter leather sticker canvas machine digital printing

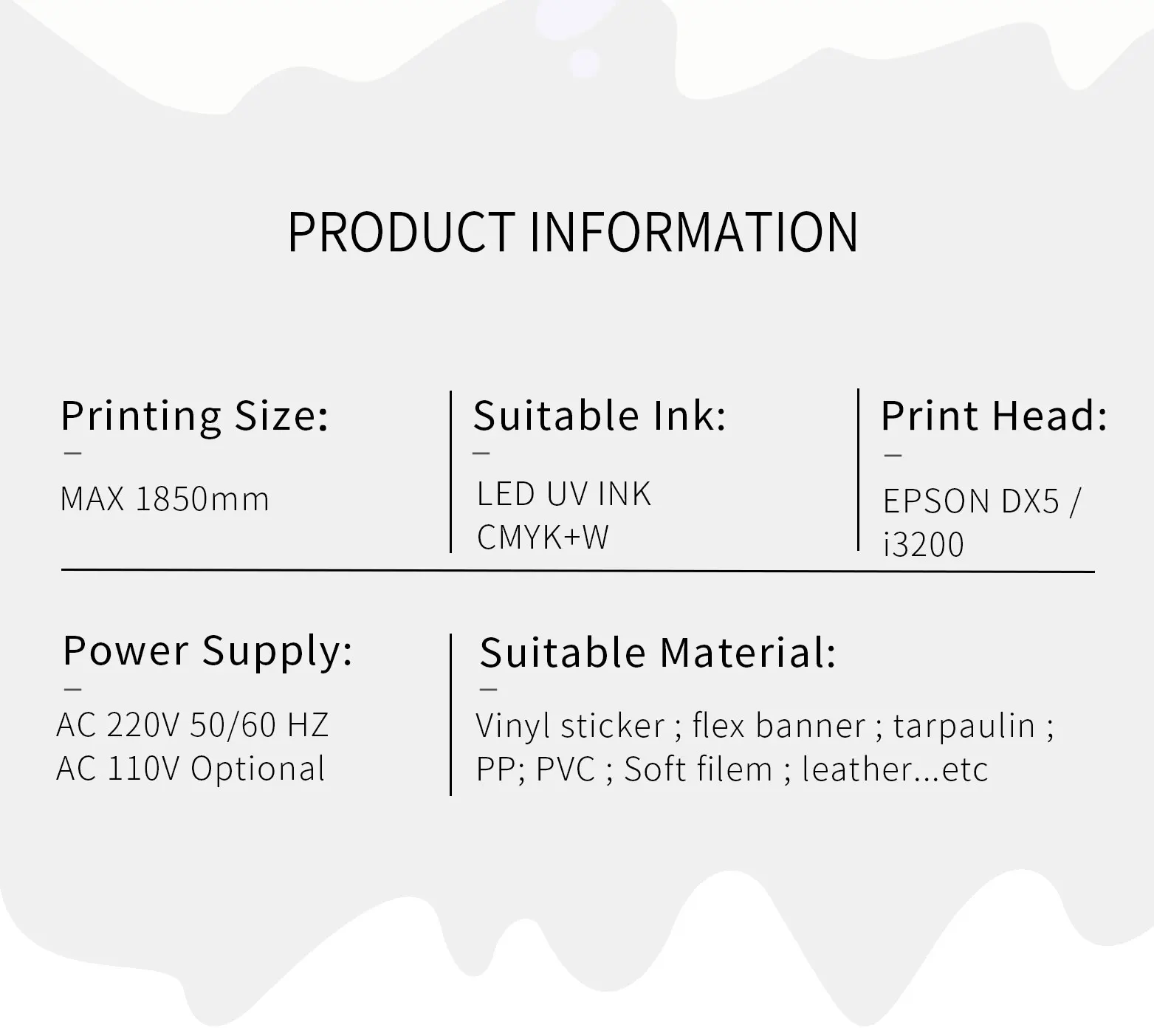

| Product Parameters | ||||||||
| Product Model | RT-1802U/3202U | RT-1804U/3204U | ||||||
| Max Printing Width | 1850mm (6ft ) / 3300mm (10ft) | |||||||

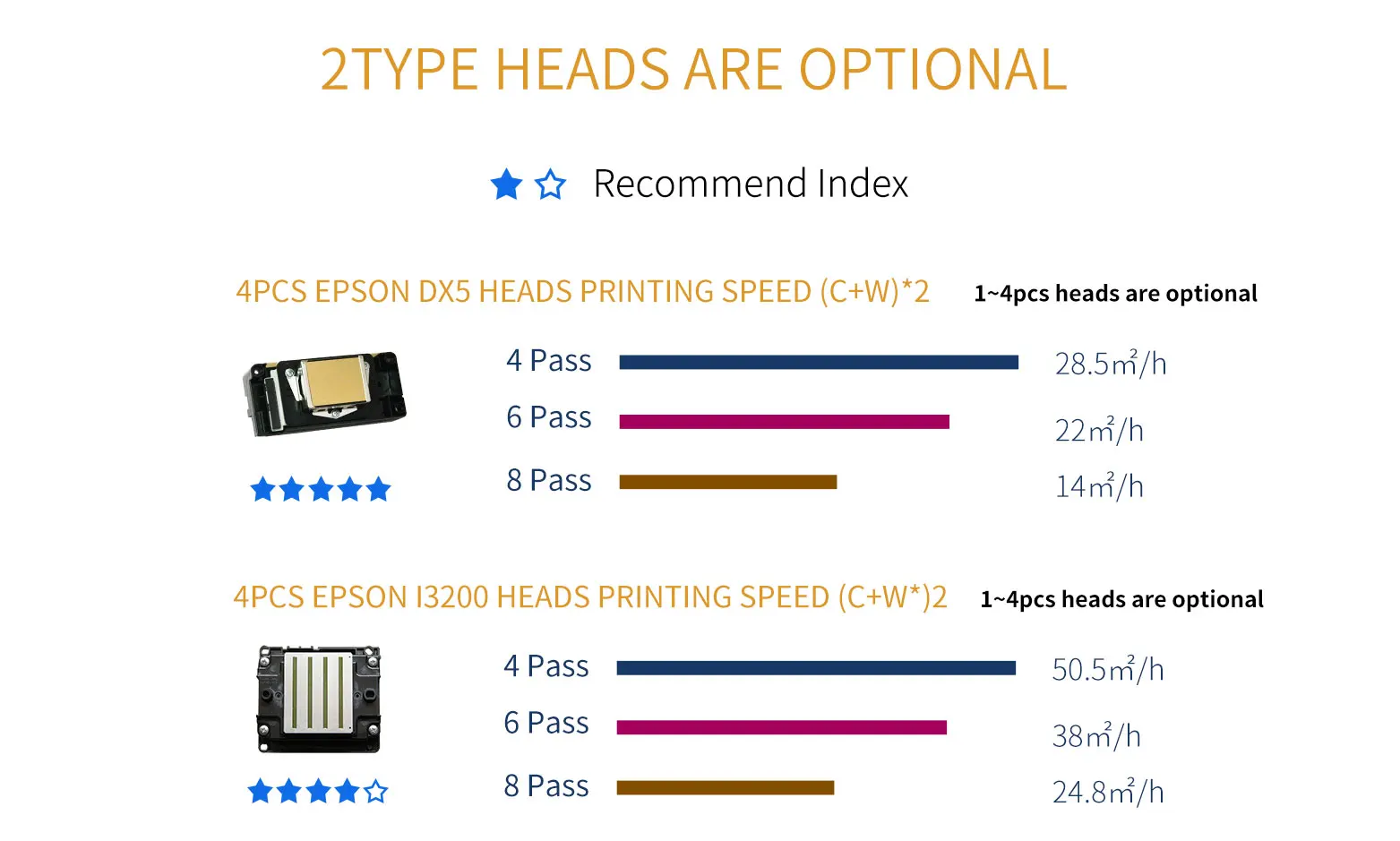

| Number Of Printhead | DX5 * 4pcs (C+W) | i3200 * 4pcs (C+W) | ||||||
Printing Speed | 4Pass | 28.5 m2/h | 50.5 m2/h | |||||
| 6Pass | 22 m2/h | 38 m2/h | ||||||
| 8Pass | 14 m2/h | 24.8 m2/h | ||||||
| Printer Head Height | Adjustable 2~5mm | |||||||
| Resolution/Ink droplet size | 1440dpi (Max) / 3.5 ~ 21 pl | |||||||
| Working Temperature | Temperature range: 20℃ ~ 30℃ / Relative humidity ：40%RH ~ 65RH% | |||||||

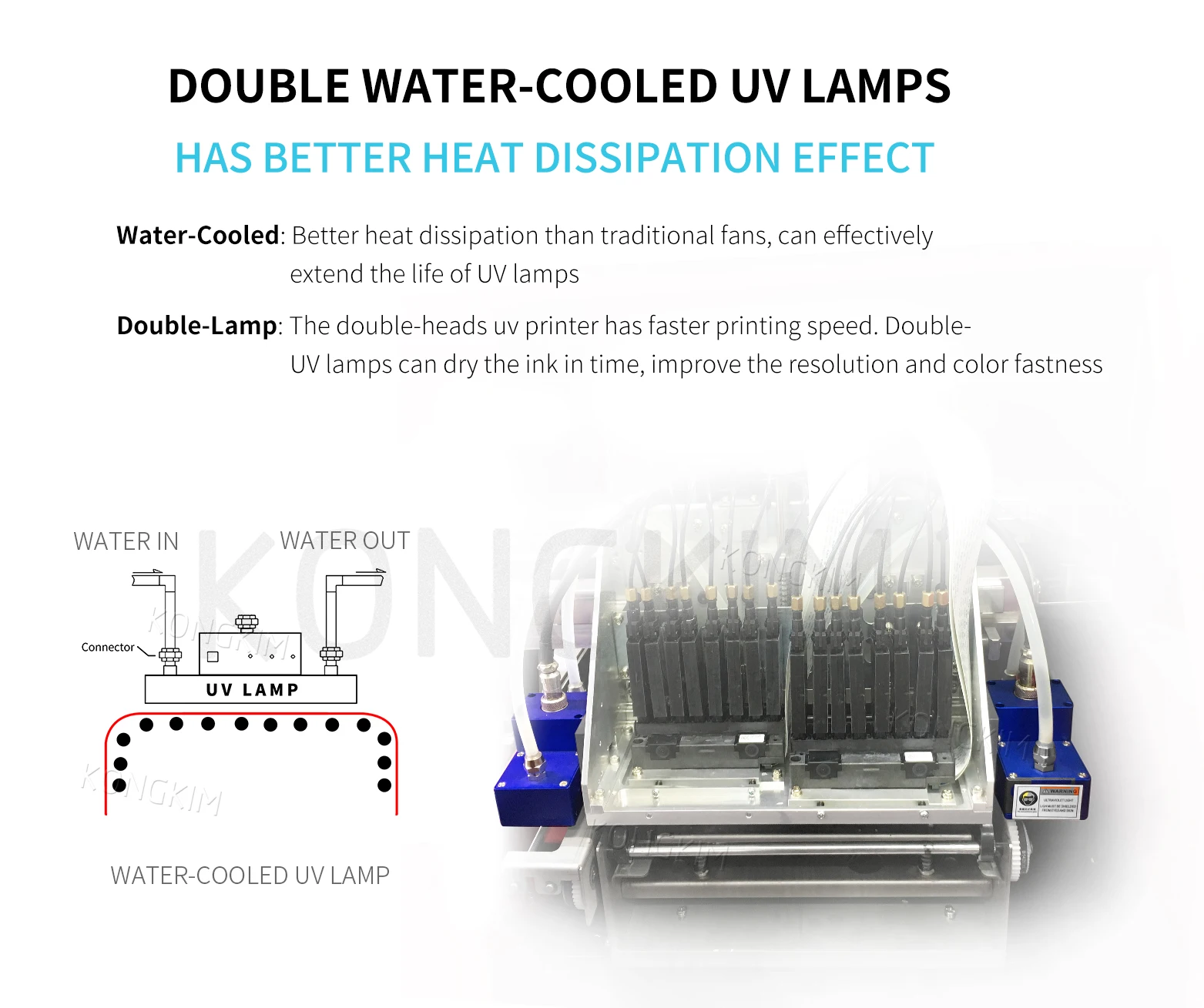

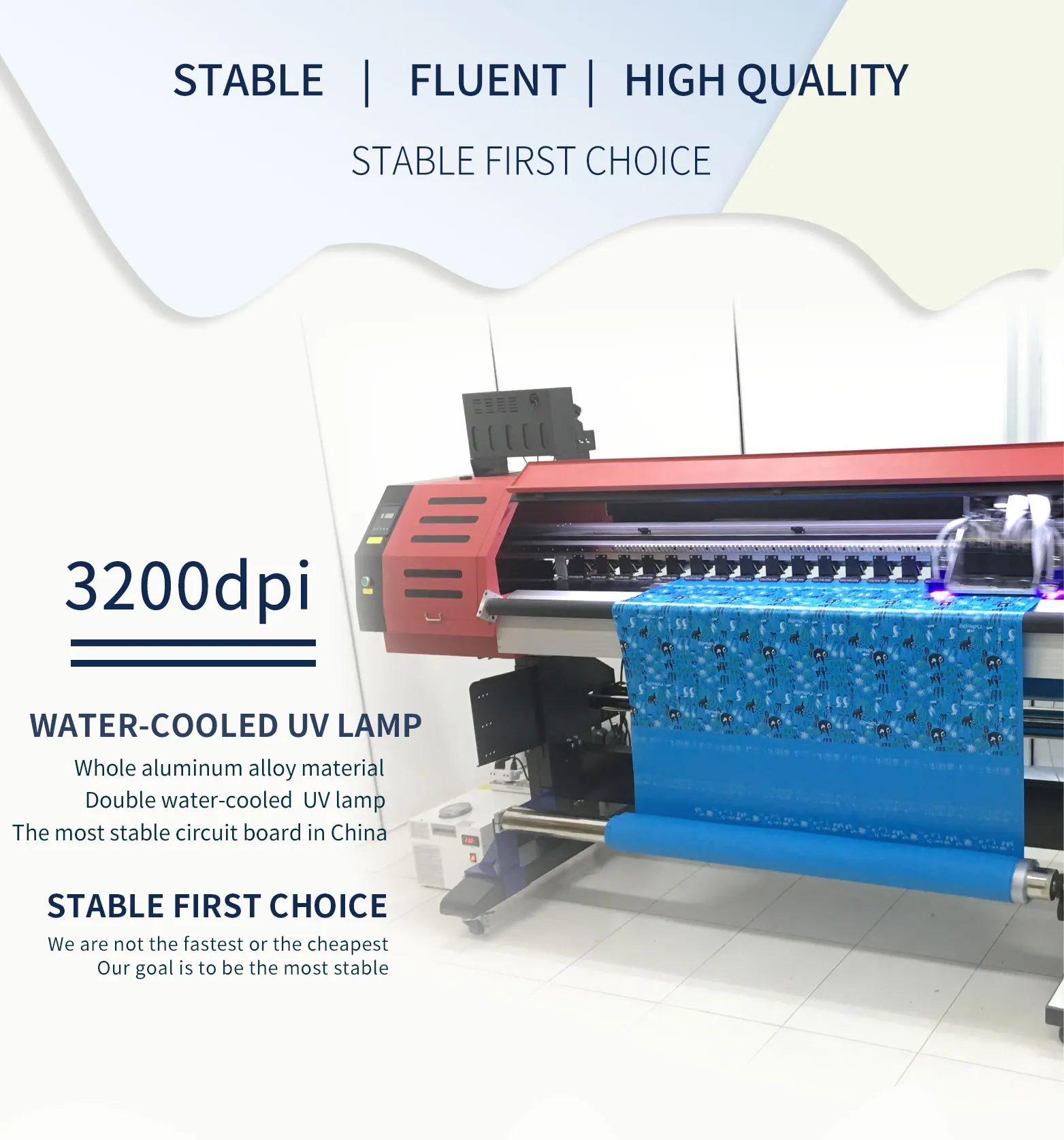

| Drying System | Double water-cooled UV lamp | |||||||
Media | Width: 1850mm | |||||||

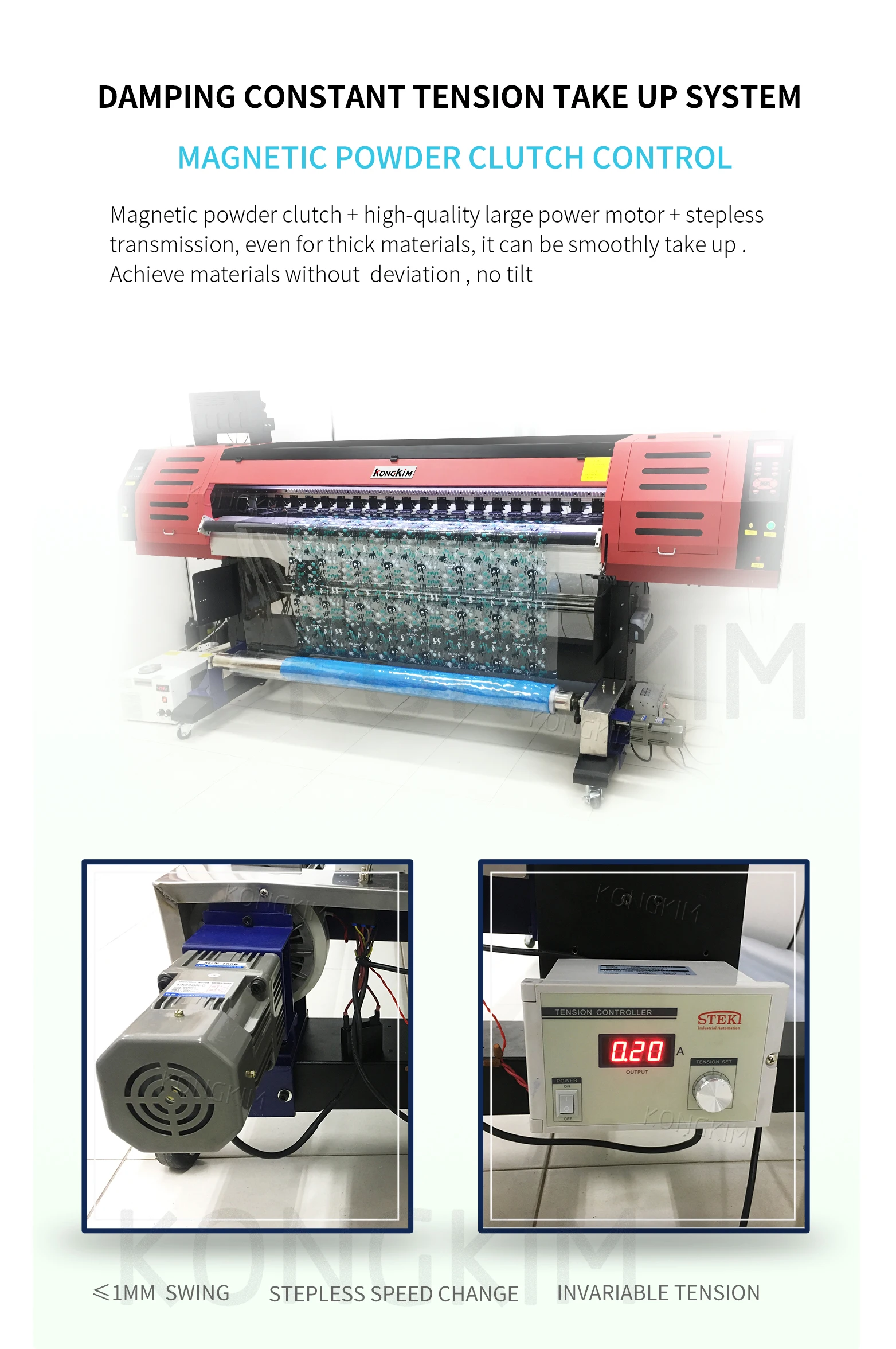

| Feeding Mode: Automatic damping feeding systemTake Up Mode: Constant tension take up system with adjustable speed | ||||||||
| Flex Banner,Tarpaulin,Canvas,Knife Coated Substrate,Double Side Printing Banner PVC,Vinyl,One Say Vision,Mesh,Reflective Banner,Reflective Vinyl,Bill board,Sticker, Wall Paper,Ceiling, Leather, Soft Filem … etc | ||||||||
Ink Supply | Environmental protection UV ink | |||||||
| Ink Supply Mode: Continue ink supply systemSmart System : White ink automatic stirring + ink shortage alarm | ||||||||
| Ink Cartridge:Bulk Ink supply system(1500ml*5) | ||||||||
| RIP Software | Maintop 6.0UV RIP & PhotoPRINT | |||||||
| Supported Image format: Tiff,JPEG | ||||||||
| Color Mode:RGB or CMYK | ||||||||
| Control Software | Control Software (Cn/En) KONGKIM exclusive version | |||||||
| Data Interface | USB 2.0/3.0 | |||||||
| Operating System | Windows 7, Windows 8 , Windows 10 64bit | |||||||
| Voltage | AC220 (±10 )50/60HZ ; AC110(±10) 50/60HZ Optional | |||||||
| Power Consumption | For printer Power: 1.3 kw (Max) | |||||||
| Packing Size/Weight | L*W*H : 3200*900*1350mm 370KG (RT-1802U) | |||||||
| Packing Size/Weight | L*W*H :4800mm*1100mm*mm 850KG (RT-3202U) | |||||||
About Our Factory
CHENYANG TECHNOLOGY CO.,LIMITED is located in Huangpu district of Guangzhou City,Guangdong Province.Chenyang tech is a professional digital printing manufacturers, owning one stop complete service system of printer machine, ink and process,mainly including DTG T-shirt printer,UV printer,Sublimation printer,ECO-solvent printer,Textile printer and the matching ink and process.Chenyang tech has an excelent research and development team,dedicatedly focusing on digital printing industry,having accumulated rich experience. We are gradually strengthening our brand advantage featured by high quality and efficient after-sales service and solid technology.Chenyang tech embraces the enterprise spirit of "Quality, Intention service",sticks to the concept of development of "Quality Wins Customer,Creditability Creates Benefit".We will provide digital printing solutions to our customers with first class products, outstanding creditability and meritorious service,in order to stand out in market through our perseverant efforts.
Our products have got the international certification of quality and sold to worldwide. We have built a long term business relationship with the customers
Our Service About Service : Product with good quality is very important,but after sales sevice also very important:
1.We have professional engineers who have more than 6years, is very patient to support you if you have any questions;
2.We can support you 24hous for online training and guide you step by step;
3.If you need to support you in your local shop,our engineers have passport,we can suppor you for overseas training.
4.We have showroom in Guangzhou, welcome to learn more here,we can discuss and guide face by face.
