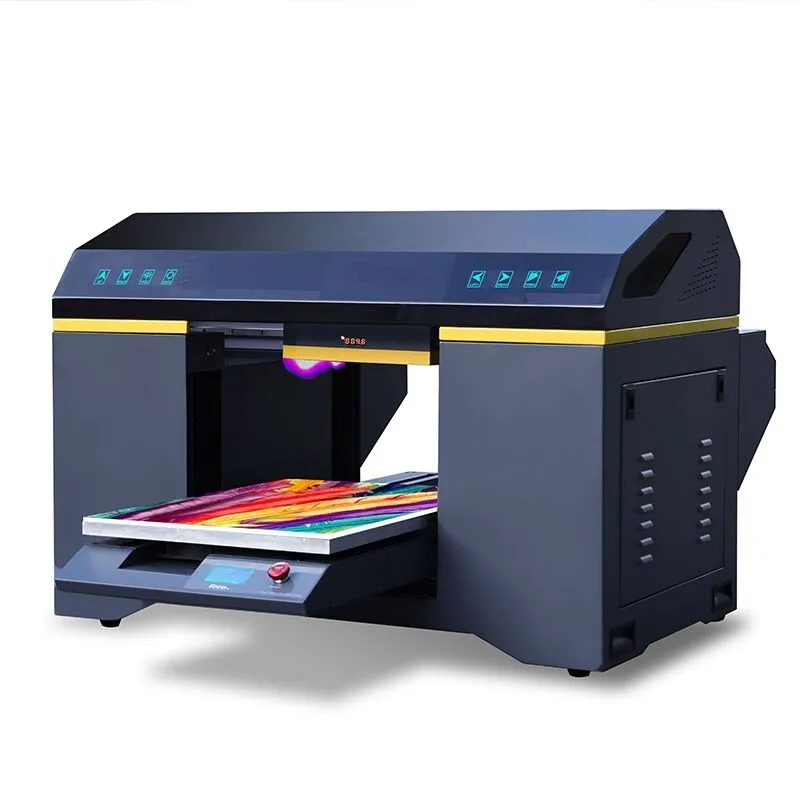

General Explaination:The newest designed usb flash drive digital golf balll pen brand logo printing machine was specical designed for customer who want to get a industrial printing speed and commercial printing result, special for customer who want to get a vivid color result and high density of white ink printing. Also this machine was built with industrial level configuration as Linear rail for both X carriage and Y flatbed motion. Dual Servo motor go with the Ball screw to let the motion with high precision. Also the one pass printing model (Print white ink and color ink in one time) and high carriage printing frequency up to 18000K can save the time and improve the printing speed for customers.
The Newest XP600/DX10 also mounted on usb flash drive digital golf balll pen brand logo printing machine, it can be choosed by 3pcs. This XP600/DX10 print head was belong to industrial level as the variable data ink droplet printing, good viscosity compacity, high fire frequency and grayscale printing… Please check the clear explaination as following:
Specification
| Model | usb flash drive digital golf balll pen brand logo printing machine | ||
|
Printing technology |
Print head technology | MicroPiezo | |
| Print head quantity | 3pcs XP600/DX10 print heads | ||
| Ink droplet | 5.2pl-22pl | ||
| Grayscale | 8 Degree | ||
| Halftoneing | 1Bit/2Bit | ||
| Fire frequency | 500k-1700k | ||
| Eclosion type | Rand, Wave, 3D, Fog, Pass | ||
| Print speed (Two heads) | 180seconds / Full 60*40cm size | ||
| Max. printing area | 40*60cm | ||
| Max. media thickness | 20cm | ||
| Print direction | Unidirection / Bidirection | ||
| Repeat printing precision | Overlap small than 0.1mm | ||
| Carriage motion frequency | 600-2000mm/s optional | ||
| Ink dot jet frequency | 1Hz-2000Hz optional | ||
| Carriage drive type | DC servo motor | ||
| Table drive type | DC servo motor | ||
| Drive type | Taiwan Hiwin ball screw | ||
| Guide type | Linear rail | ||
| Ink dot type | 1bits, 2bits, dark, halfton, real time | ||
| Fire type type | Rand, fog, wave, 2D | ||

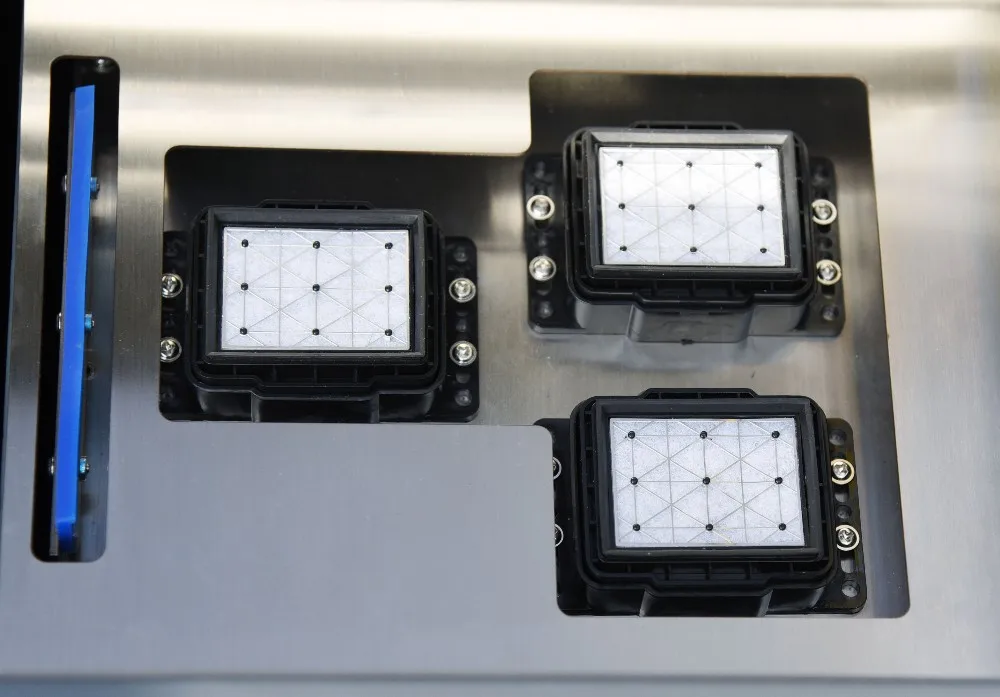

| Head maintainance type | Wet-cap system / Idle flash system | ||
| Control type | Computer Intelligent / LCD button | ||
| Printing resolution | 720*360dpi / 720*540dpi/ 720*720dpi/ 720*1080dpi 720*1440dpi / 720*2160dpi/ 720*2880dopi | ||
| Color Ink Tank Volume | 500ml non-chips bulk supply | ||
| White ink tank volume | 500ml non-chips bulk supply | ||
| White ink print type | Spot, gardient, UnderColor, Substrate, Spot+substrate, Spot+Under color | ||
| Support Ink type | DTG ink/ sublimation ink/ reactive ink/ discharge ink/ eco solvent ink/ CTS ink/LED-UV Curing ink . | ||
| Ink process | Filter system+white ink shaking system+white ink circulation system | ||
| Color management | ICC Curve &Default ICM | ||
| Rip software | Riprint | ||
| Printhead Protection | Intelligent Self Protect System | ||
| Power | 110-220V 50-60HZ 850W | ||
| Printing Interface | USB2.0/3.0/LTP | ||
| Operation System | Win2000/ WinXP/Win7/WIN8 | ||
| Working Environment | 50%humidity, 21-29Degree | ||
| Printer Size | 1400*1250*800MM | ||
| Shipping Size | 1460*1310*950MM | ||
| Printer N.Weight/G.Weight | 185kgs/245kgs | ||
Details
Industrial XP600/DX10 Print Head
Name: Print head
Brand: Epson
Original: Japan
The usb flash drive digital golf balll pen brand logo printing machine was mounted by 3pcs Industrial XP600/DX10 print head, which can get 8 degree grayscale, 5.2-22pl Variable data ink droplet printing. 500-1800k adjustable fire frequency to drive the print head printing with high speed inkjet under durable printing.

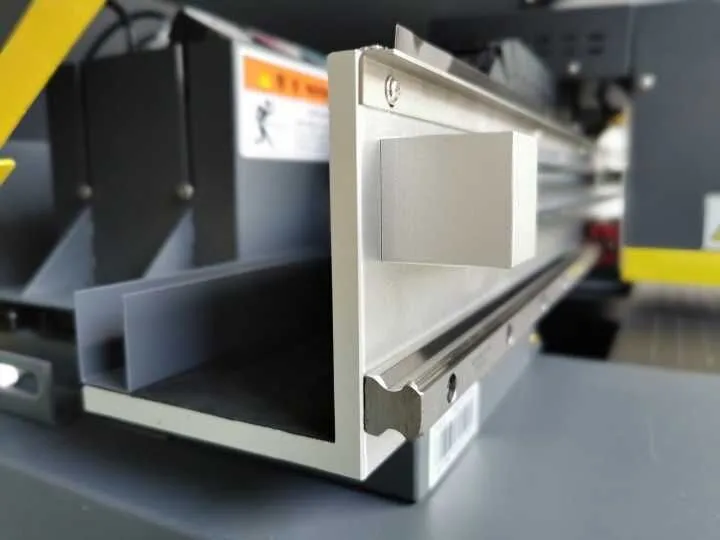

Carriage Japan Linear Rail
Name: Guide Rail
Brand: Hiwin
The usb flash drive digital golf balll pen brand logo printing machine's carriage was mounted with Japan brand linear rail to driver the carriage moving with high precision and low noise, also to esure get a good X axis repeat printing precison.
Laser engraving mechanical making.
Making technology: Laser engravingAll the usb flash drive digital golf balll pen brand logo printing machines' metal parts and mechanical parts were made by CNC laser engraving technology to be sure the machine get a stable keel and frame to support the heavy duty job printing. also the transparent Dust-Free window can prevent the dust free of print head and anti-UV effect ink to get head clog and easy monitored.
Humanistic interface exchanging operation .
All the movment of usb flash drive digital golf balll pen brand logo printing machine can be done by the humanistic interface such as flatbed backward/forward, up/down, and also can detect the phase and encode of each position. easy to operation and maintain.

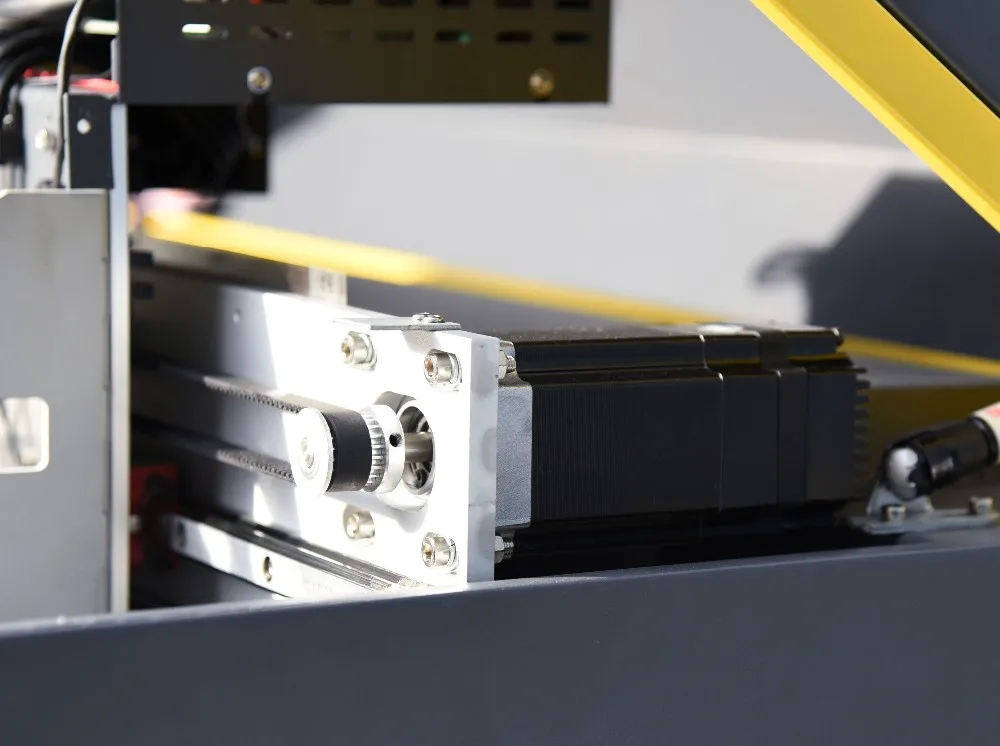

Servo Motor for Carriage
Name: DC servo motor
Original: Korea
usb flash drive digital golf balll pen brand logo printing machines' Korea DC servo motor drive the carriage motion with correct phase to get a cycle data feedback and Add-up phase position. so the X axis can print with high speed and stable.
Super volume ink tank
Usage:For continus ink supply to the print head
The Super volume ink tank of usb flash drive digital golf balll pen brand logo printing machine can ensure the print head inkjet with continus ink supply from the ink tank, also 5 ink tank can allow to put max. 5 color to be sure the Vega-Jet can also print on dark garment with white ink under high density.

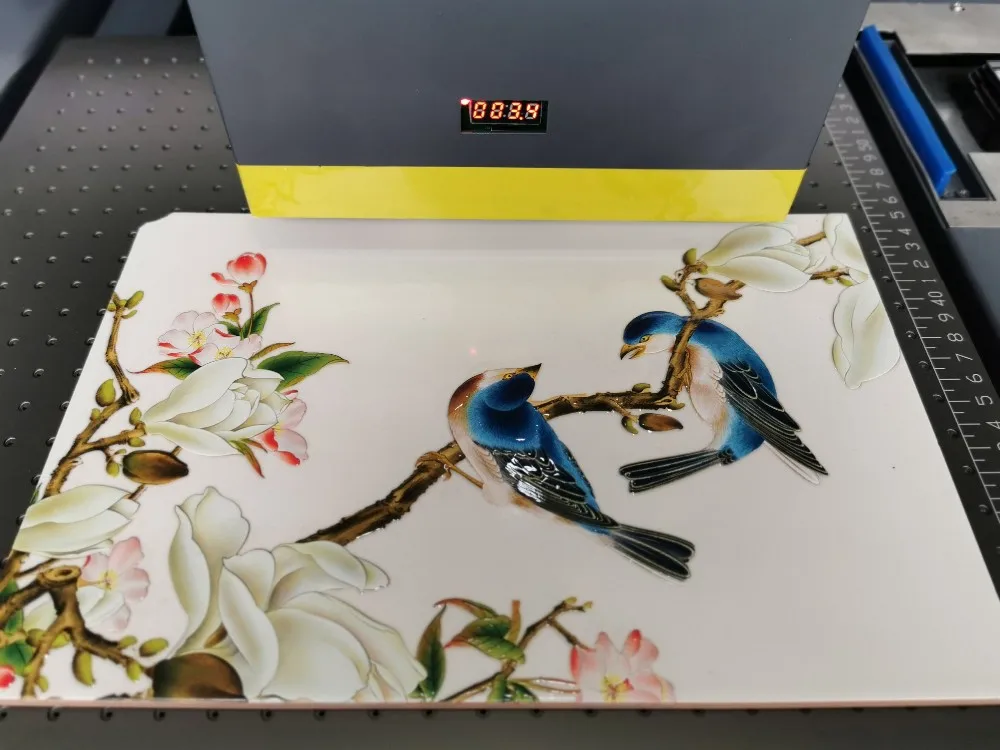

Printing sample
Printing sample of usb flash drive digital golf balll pen brand logo printing machine
Printing sample of usb flash drive digital golf balll pen brand logo printing machine
Printing sample of usb flash drive digital golf balll pen brand logo printing machine
Printing sample of usb flash drive digital golf balll pen brand logo printing machine

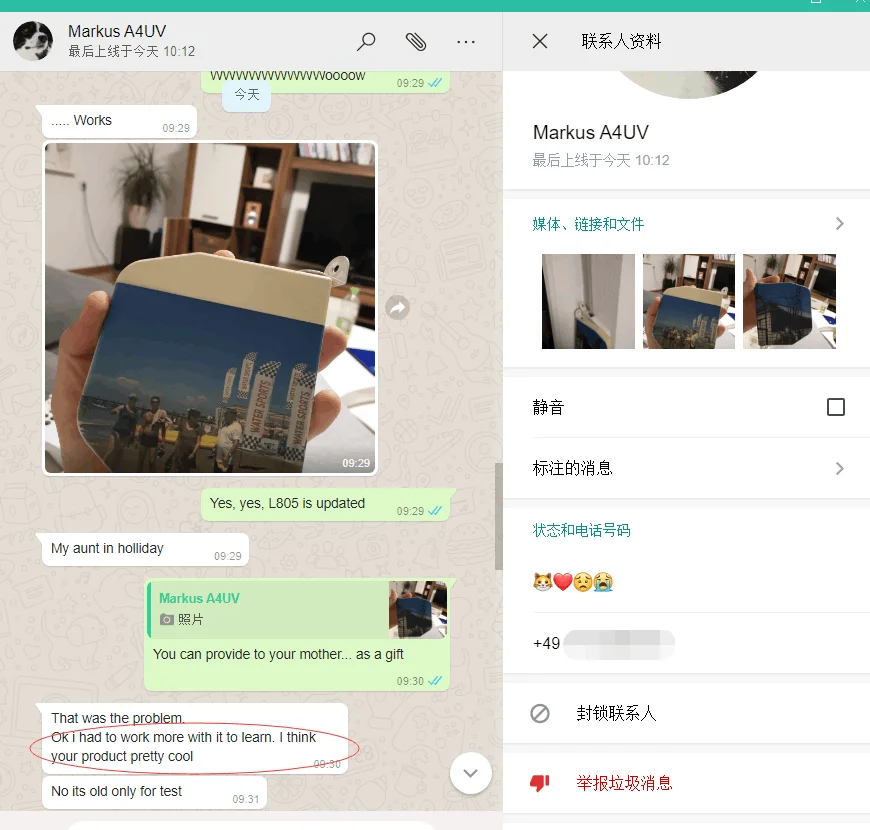

Customer Feedback

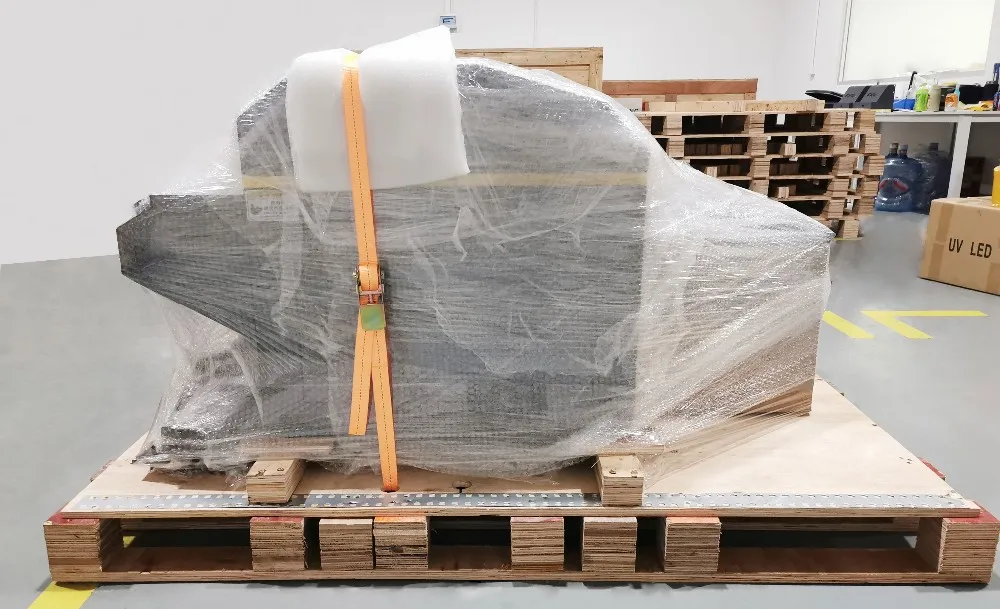

Packing & Delivery
| Packaging | ||
| Size | 1460*1310*950MM | |
| Weight | 160KG | |
|
Packaging Details |
1. The normal package is wooden box.2.The wooden box will be fumigated. If container is too tighter,we will use pet film for packing or pack it according to customers special request. | |
Customer service
After-sales Service

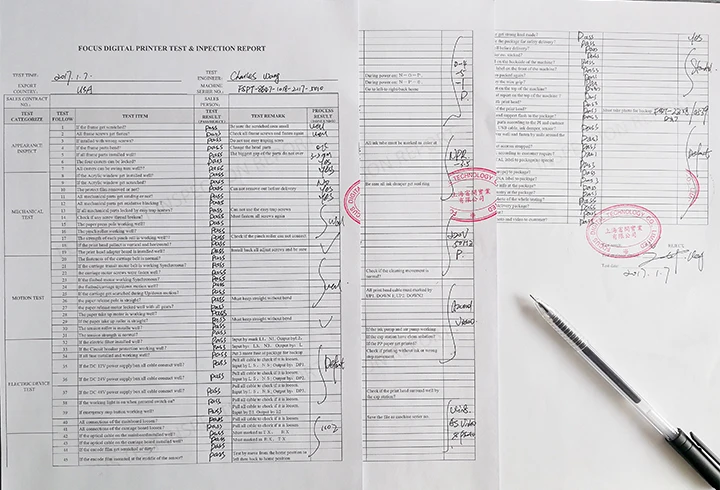

1.Focus Will Guarantee printer for 13 months and provide lifelong technical support.2.Quality is our culture, we will take about 100 tests on the machine before delivery, and share test vides and reports with our customer.3.Focus Inc skilled engineers provide 3-5 days online training when you get the machine4.professional english manual and operated videos will go with the machine5.engineers will fly to your side for final repaired if needed
