6090 Small Size UV Printer Uv Digital Printer With Ricoh GH2220 Print On phone Case glass UV Printer
Product Description
Technical Data:
| Model Type | SU6090-V01 | ||
| Printhead | Drop on demand Poezo Head | ||
| Printhead Quantity | 2 | ||
| Printhead Type | Ricoh GH2220 | ||
| Printing precision | 360*360dpi, 360*720dpi, 360*1080dpi, 720*360dpi, 720*720dpi, 720*1440dpi, 720*2160dpi | ||
| Printing mode | Uni-direction and Bi-directional | ||
| Printing speed (8pint heads) | 4PASS | 6PASS | 8PASS |
| 14m²/Hr(151ft²/Hr) | 10m²/Hr(108ft²/Hr) | 6.5m²/Hr(70ft²/Hr) | |
| Media Handing | Vaccuming media fixation platform | ||
| File Format | TIFF, JPEG, POSTSCRIPT3, EPS, PDF,etc | ||
| Color Control | Conform to ICC standard, with function of curve and decsity adjustment | ||
| Interface | USB | ||
| Ink type | uv curable ink/UV LED ink | ||
| Print color | C M Y K WH | ||
| Print size | 600*900mm | ||
| Printable media | Craftware: Barrette, U Shield, Glass frames, Watch belt, cigarette case, lighter, name tag, stationery products, toys, cellphone shell, etc. | ||
| Media Thickness | Up to 100mm (39.4mil) | ||
| Printhead and feeding device | AC High precion servo motor | ||
| Power specification | 50Hz/60Hz, 220V(+-10%)>20A | ||
| Operational environment | Temprature 20-28C(68-82.4°F),Humidity: 40%-60%Rh | ||
| Dimensions (L*W*H) | 1600*1600*1000MM | ||
| Net Weight | 200kg | ||
Preferred Application:
- Advertising agency, production of various business gifts, art craft signs and boards.
- Printing plants, special and custom printing service
- Printing works in garment, textile and leather industries.
- Plastic products, U disk, toy products.
- Metal products, sign board products
- Glass printing, crystal products.
- Silicon products printing.
- Shoes printing on surface, pad and bottom.
- Printing of Oil paintings, traditional Chinese paintings and other paintings.
- Printing of hair band, hair pin, bracelet, pendant and other ornaments.
- Printing of eye glass arms, frames and other glass accessories.
- Printing of kitchen cabinet door, closet door, bathroom cabinet and other furniture.
- Printing Shop, Wedding Photography Gallery, Scenic Spots, Hospitals and Schools.
Selling Points
1. All parts (except the print head) are self-developed, we can adjust the printer according
to your needs.
2. Comparatively low price, even better price will be offered if you want to our overseas agent
3. Scaled vacuuming media fixation platform (only if you need) avoids displacement during printing.
4. One or two uv led lamp (with water cooling system) to dry up the ink.
5. Double heads, one for white ink, the other for CMYK.
6. With special bulk system, a stirrer and continuously micro current keeps the ink in good condition all the time. When the remaining ink level is under 1/3, ink tank indicator lights up, reminding you to refill timely
7.With touch screen, you can control the machine easily.
8. Free RIP software
9. The printing can be interrupted for refilling and mainteining. You can continue the printing after refilling or maintenance.
Working size for reference

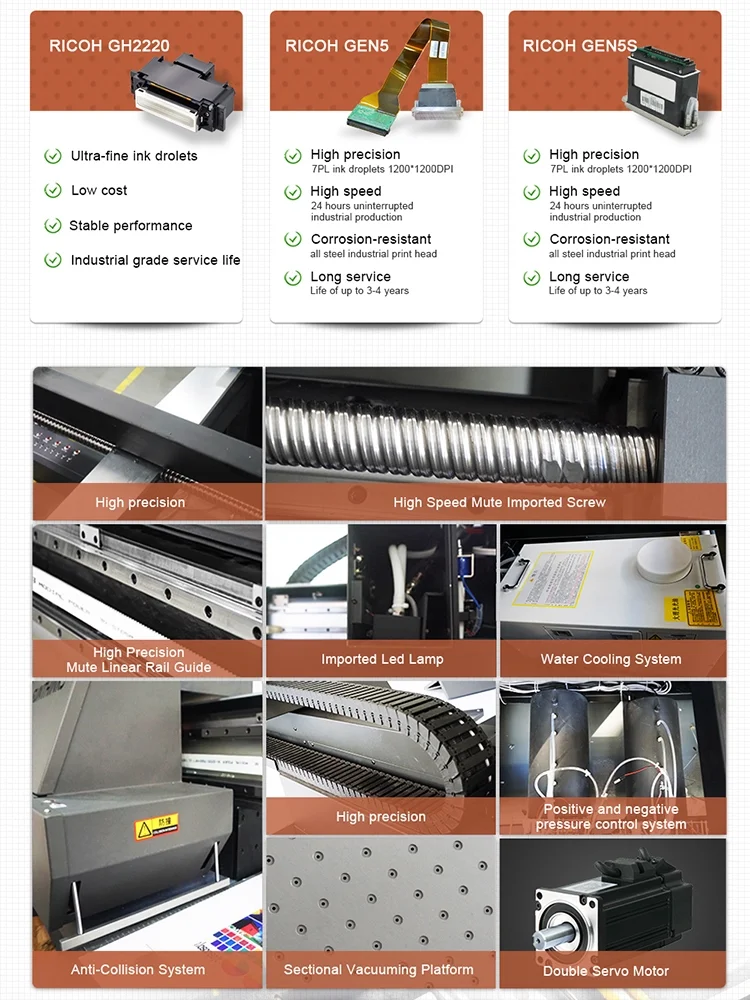

Ricoh printhead & machinery equipment details
Some beautiful Printing sample for reviewing
More Exhibtion information For Reference
Contact Information
