Digital outdoor 1.8m advertising photographic photo printing canvas inkjet eco solvent printer machine
Product Description
1.Details of photographic photo printing machine:
|
Model |
NDL-S2000 |
|
Printhead |
XP600 1 printhead |
|
Print Resolution |
1440dpi |
|
Max Print Width |
1850mm |
|
Print Speed |
Draft Model 2pass: 25m2/h |
|
Production Model 4pass: 18m2/h |
|
|
Quality Model 6pass: 13m2/h |
|
|
High-resolution Model 8pass: 9m2/h |
|
|
Ink |
Type: Eco-solvent,water-based ink,dye sublimation |
|
4 Color: C M Y K |
|
|
Capacity: 450ml per cartridge |
|
|
Ink Supply System: Negative pressure CISS |
|
|
Media |
Feeding System: Roll to Roll,Pieces |
|
Type: PP,Photo paper,flex banner, vinyl, film, stciker, wallpaper, transfer paper ect. |
|
|
Printhead Height |
Adjustable |
|
Printhead Clean |
Automatically Cleaning,Owning Anti-blocking, Auto flash & Moisturizing function |
|
Heating System |
Tri-stage Heating System Control By PID Temperature Control System |
|
Drying System |
External Drying Fan |
|
Language |
Chinese/English |
|
Operation System |
WindowsXP/Win7 |
|
Print Interface |
USB 2.0/Net interface |
|
Compatibility |
Support LAN Print |
|
RIP Software |
MainTop 5.3(free) / photoPRINT & Ultraprint (charge 300USD) |
|
Working Enviroment |
Temperature:15°- 35° Humidity:35RH – 65RH |
|
Power Supply |
AC_110V/220V, 50/60HZ |
|
Power(W) |
Stand-by Power 32W,Maximum Power 1700W |
|
Noise |
Stand-by<32dB ,Working<65dB |
|
Packing Size |
2815*840*770mm |
|
NW/GW |
220kg/200kg |
2.Features of photographic photo printing machine:
1) Advanced Micro piezo technology ,realized 1440dpi,perfect printing effect
2) stable mute linear guide will improve the printing speed and resolution .
3) automatic lifting ink stack ,precision alignment ,smooth ink absorption.
4) intensive pressure roller ,printing no skew.
5) heating temperature can be controlled based on printing.
Detailed Images
Details of photographic photo printing machine:
Printing samples
Details of photographic photo printing machine:

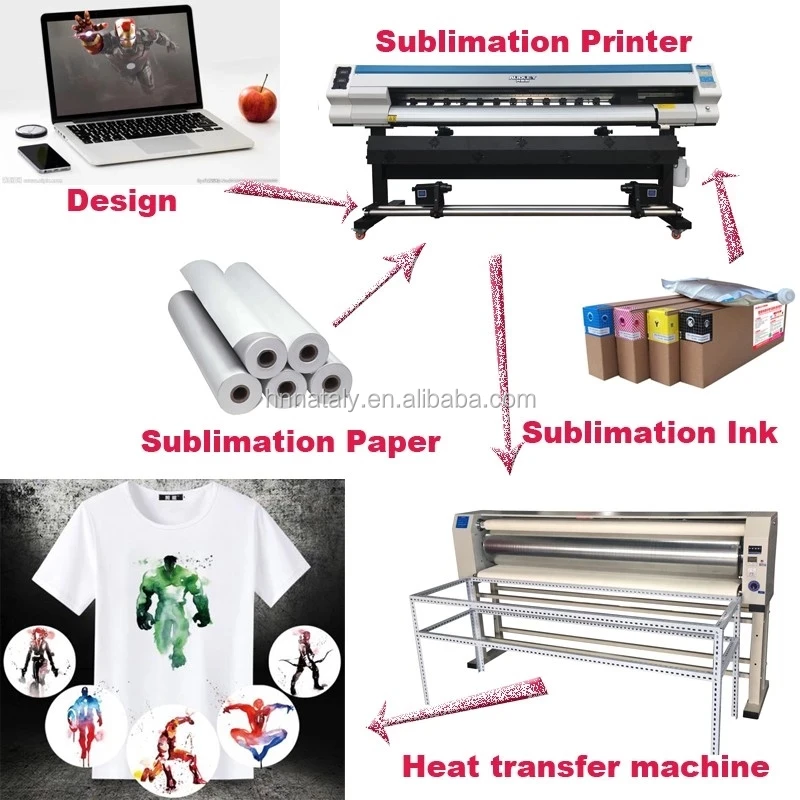

Transfer Process
Packaging & ShippingPackaging and shipping of photographic photo printing machine:
Company Information
FAQ
1.Can I get a free sample for a testing?
A. Sure, you can send us the material you want to print, we will test it for you and take photos and videos for your reference, if you want to see it, just pay the shipping cost is ok.
2.How long warranty period you provide for your products?
A. All machine of us have 12months warranty from the day you begin use the machine.
3.Do you have all consumables for your machine?
A. Yes, all consumables of our machine is avaliable, just contact us and tell us your requirement.
4.Can I install the machine easily?
A. Yes, the machine support all kinds of operate system, and there is CD and manual matched during paking, you can see the CD install by yourself. Also you can ask us for help, we will use teamviewer assist you online on problem.
5.How to buy your machine?
A. You can place Protection Order on Alibaba directly, or let us know the detailed you need, we will make proforma invoice with our bank information for you confirm, and we will delivery the goods accordingly after get payment, and let you know the tracking number(or send you B/L) then.
6.Do you take part in the exhibition?
A. Yes, we take part in exhibition in Shanghai, Guangzhou each year, and we will send email to inform you some days in advance, and welcome to our booth in that time.
