■Specifications
| Code | M2620TP-20S | M2620TP-20TS | M2620TP-20TGS | ||
| Dimensions | W＝208 mm、D＝204 mm、H＝383 mm | ||||
| Stage width | None | 18 5mm | 145 mm (with guide) | ||
| Weight(with ink & power supply) | Approx 3.8 kg | Approx 6.0 kg | Approx 6.9 kg | ||
| Display | 4.3" color LCD touchscreen | ||||
| Controls | Touchscreen, power switch | ||||
| Printable size | W 65 mm× H 12.7 mm | ||||
| Print method | Digital thermal inkjet | ||||
| Print density | Max 600 dpi | ||||
| Print speed | Max 150 mm/s | ||||
| Object height | 0～155 mm | 0～76 mm | 0～67 mm | ||
| Memory | Internal storage 3.5 GB, print design max 100 itemsExternal storage: USB flash drive max 32 GB (FAT/FAT16/FAT32) | ||||
| Interface | USB 2.0 Type A connector, Bluetooth 4.0 (SPP) | ||||
| Fonts | Gothic Kanji outline font (JIS-1・JIS-2)Possible to add external fonts | ||||
| Barcodes | JAN8、JAN13、EAN8、EAN13、UPC-A、UPC-E、ITF、NW-7(CODABAR)CODE39、CODE128、EAN128、GS1 DataBar(RSS) | ||||
| 2D Barcodes | QR code, Micro QR, PDF417, Micro PDF417 | ||||
| Symbols | GS1 DataBar Omnidirectional, GS1 DataBar Truncated,GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite | ||||
| Functions | Ink level, estimated remaining printout warning Idle warning (Alert if printing is not performed within a specified amount of time to protect the print head) Numbering (max 6 digits) Kanji dictionary for direct input on the unit Automatic power off Internal clock (accurate to ±13s per month) Date calculator (input by year, month, day, hour) | ||||
| Connector | Foot switch※3 connector | ||||
| Power supply | AC adapter, 100-240 V、50/60 Hz | ||||
| Operating range | Temp: 15～35℃ (no condensation) | ||||
| Data editor software | ※System requirement: Windows7/8/8.1/10 (32 or 64 bit) | ||||
| Certification | Uses RoHS-compliant parts | ||||
| Accessories※4Optional parts | AC adapter, Data editor software | ||||
※3: Foot switch sold separately as an optional part.
※4: Ink not included with main unit. Please purchase from the optional parts below.
※5: Guide stage can be attached to elevator. ■Ink
| Code | Name | Color | Quantity | Accessories |
| M2620TP-B | Quick-dry ink | Black | 1 cartridge | Cleaning paper |
| M2620TP-BL | Quick-dry ink | Blue | 1 cartridge | Cleaning paper |
| M2620TP-R | Red | 1 cartridge |
| Code | Name | Color | Quantity | Accessories | Notes |
| M2620TP-WH | Quick-dry ink | White | 10 cartridges | Cleaning paper | Use within 3 months |
●It is available only in lots of 10 cartridges.
●Purchased cartridges cannot be returned regardless of their use-by date.
●Since it is made-to-order, delivery may take a longer time.
●The software in the printer unit must be version 1.7 or newer (free updates and instructions can be found in the manufacturer's website).
●For cleaning during continued use、wipe using the included cleaning paper (dry).
●If the print head remains idle for around 1 hour, wipe using the included cleaning paper soaked in anhydrous ethanol.
●It may be necessary to remove and shake the cartridge even during continued use.
●The printer must be set to dark mode (more ink used).

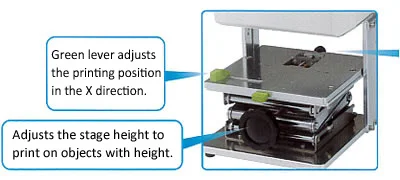

■Keeps printout quality consistent regardless of the userInsert the package in the bay and touch the screen (or use the foot switch) to print on the specified position.■Easy adjustment of the printing positionUse the elevator to adjust the height and print on objects with height.Use the guide stage to adjust the printing position in the X and Y direction.
■Print on various material types●Can print clearly on 3-dimensional objects made of aluminum, wood, plastic, paper, film, or other materials.Can print on flat as well as curved and uneven surfaces.※2May not print properly on ink-resistant and scratch-resistant materials. Please request a test print before purchase.Assembled box packaging / Clear plastic materials

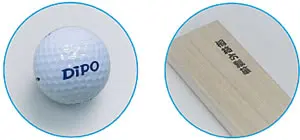

Golf balls and other uneven surfaces / Wooden materials
■Easily replaceable ink cartridge Open the cover on the back of the unit.
Release the lever to remove the cartridge.
■Includes print design editor software Easily create and edit print designs on your computer. Set the desired position of the text, date, barcode, etc. Unit automatically adjusts expiry dates based on its internal clock. Use a USB flash drive or Bluetooth to send the design data to the unit.
■Printout examples●Best-before/Expiry date●Lot numbers●QR codes●Comments●Logos
■For printing on thin paper or packaging, see product M2620SB-10P.
■Types M2620TP-20S : No Elevator TypeSuitable for printing on 3-dimension objects with significant height.
M2620TP-20TS : Elevator Type Includes elevator with adjustable height to print on various sizes of objecs.
M2620TP-20TGS : Elevator + Guide Type Includes guide stage for fine tuning of printing position.
■Optional parts ●Attachments M2620DP-MJ185S : Elevator
M2620DP-GS145S : Guide stage
M2620DP-FSS : Foot switch
●InkFor a 10-point date printout in YY.MM.DD,1 ink cartridge lets you print:Approx. 60,000 times (in dark mode)Approx 190,000 times (in light mode)
